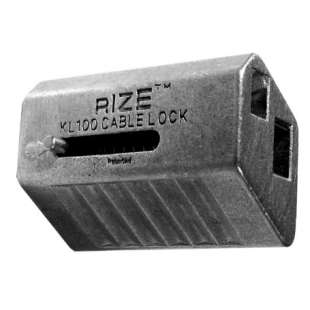

Zip-Clip Rize Block KL100

Zip Clip Rize Blocks KL100 are wire locks designed as a fast and reliable method for suspending services and fittings. The release mechanism on the clip allows for simple and accurate height adjustments.

This keyless system is easy to use and meets the BSEN 12385 standard. Used with 2mm thick wire they have a safe working load of 50kg.

Installation:

Cut wire to desired length for the drop required

Pass one end of the wire through the zip-clip in the direction of the arrow and draw enough wire to go around your fixing point

Pass the wire end back through the zip-clip leaving at least 15cm of free wire protruding

At the other end again pass the wire through the zip-clip in the direction of the arrow

Pass the free end of wire around your suspension or through your fixing and back through the zip-clip leaving 15cm of wire protruding

Always confirm engagement of the zip-clip on the wire by pushing the pin in the opposite direction to the arrow indicated
