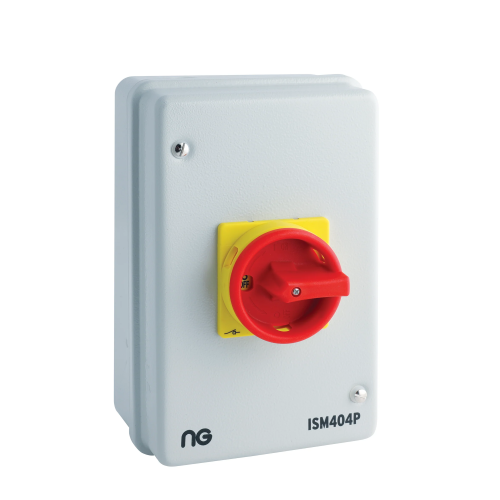

Metal Clad 40A 4P Isolator with IP54 protection for safe power cut-off. Ideal for industrial and workshop settings with 15kW power control, 4 poles, and durable rotary switching. Easy to fit with 10mm² terminals.
Technical Specifications
Standards EN60947-3
Rated Current 40A
No.of Poles 4
Rated Insulation Voltage(V) 690V
Rated Operating Current(A) 40
AC-22A 40
AC-23A 40
AC-3 32
Rated Votage(Ue) 440V
Rated Power Control(KW) 15
Rated short-time withstandcurrent(Icw)800A
Connect Wire 10mm2
Screw Torque 1.2 N.m
Enclosure Characteristics
Overall Dimensions HxWxD 220x145x95mm
Depth with switch 130mm
Degree of IP IP54
Colour RAL7035
(
