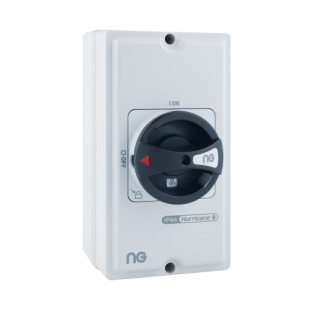

16A 4 pole switch disconnector for use with DC voltage, rated at 1500V. TUV certification. Durable polycarbonate casing with M12 knockouts, suitable for MC4 connectors. Padlockable in the off position.
General Characteristics
Standards EN60947-3
Number of Poles 4
Insulation Voltage 1500V DC
Rated current 16A DC-21B
Height of switch 160mm
Width of switch 83mm
Depth of Switch 86mm
Depth of Switch with handle 116mm
Connection type Screw
Terminal Capacity flex/stranded 4mm2 / 6mm2
Tightening torque 1.7 Nm
Ambient Temperature 50° C
Ingress protection IP66 / 67
(
