Material: Polypropylene
Material sealing gasket: TPE
Temp. range min: -30 °C
Temp. range max: 100 °C
Temperatures during install: -5 °C - 60 °C
Protection class: IP66 / IP67
Glow wire test: 750 °C
Voltage: 690 V
Rated cross section: 10 mm²
Fixing: 4 internal openings
Ø cable diameter min 3 mm
Ø cable diameter max 12 mm
External dimensions LxWxH: 160 x 140 x 81mm
Product Color: RAL 9005

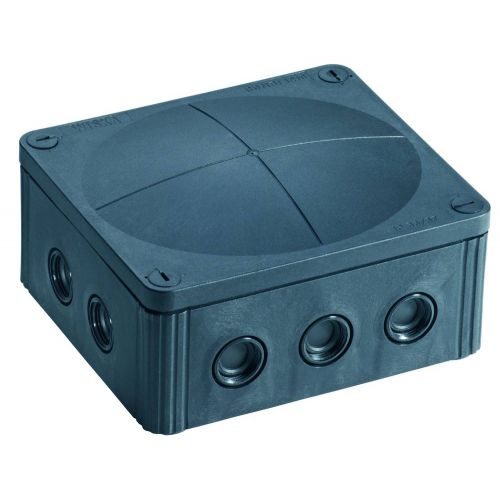

Type: COMBI 1210 BK
(
