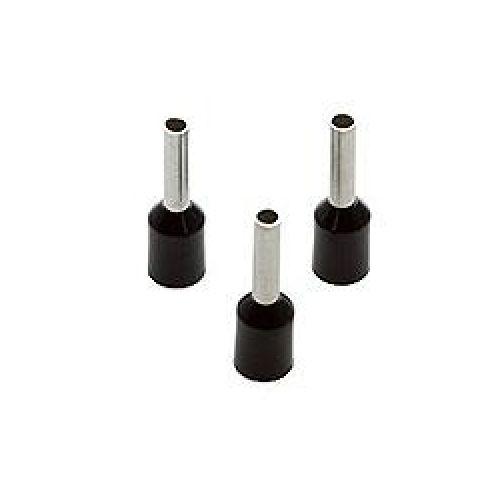

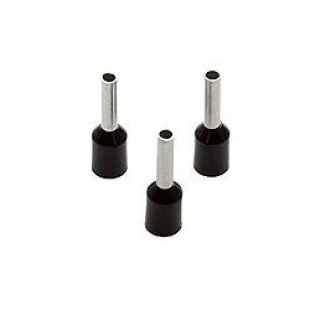

Manufactured from tin coated high conductivity copper, they are used to prevent multiple core wires from splitting, when using screw terminals.
The terminal is placed on the stranded wire and crimped into place, forming a permanent and durable termination.
Maximum Voltage 600V
Temperature range -40°C to +105°C.
Standard: DIN 46228 PT4.
Terminal Material High conductivity tin plated copper
Insulation Material Flame retardant Polypropylene
Cable size 1.5 mm²
Inner diameter 1.7 mm
Insulation diameter [D] 3.5 mm
Outer diameter 1.85 mm
Palm length [B] 8 mm
Total length [L] 14 mm
(
